Marine Diesel Overheat Diagnosis After a Sea Trial: Cummins 5.9L Impeller Failure | ImpelPro

  • Jun 2
  • 9 min read

Updated: Jun 3

If your Cummins 5.9L marine diesel overheated right after a sea trial, replacing the impeller may not be enough.

The real issue may be a raw water restriction, trapped debris, or missing impeller pieces still inside the cooling system.

Use this walkthrough to see what Eddie checks before putting the engine back in service.

A marine diesel that overheats right after a sea trial can leave you chasing the wrong problem if you only replace the impeller and move on. In this walkthrough, Eddie Protzeller inspects a Cummins 5.9L marinized diesel after an overheat, removes a destroyed impeller, and traces the missing pieces through the raw water cooling system.

This video is a practical look at marine diesel overheating diagnosis, especially when the impeller failure is a symptom of a suction-side restriction or loss of raw water flow.

A destroyed marine impeller removed during a Cummins 5.9L raw water cooling system diagnosis.

Quick Answer: Why Did the Engine Overheat After the Sea Trial?

A marine diesel can overheat after a sea trial when raw water flow is restricted before the pump or blocked downstream by broken impeller pieces. In this case, the destroyed impeller, missing vane material, and rubber dust pointed to a likely suction-side flow problem, not just a normal worn impeller.

What You’ll Learn

  • How to isolate and drain the raw water system before impeller service

  • Why the sea strainer is the first place to check after an overheat

  • How a damaged impeller can point to a suction-side flow restriction

  • Why missing impeller vanes must be found before the engine is run again

  • How back flushing helps clear debris from the cooling system

Step-by-Step Overview

1. Confirm the Overheat History

The boat had completed a sea trial and run up to speed without issue. After being hauled for bottom paint and placed back in the water, the engine overheated while returning to the dock.

That sequence matters because the failure may have been caused by something that happened during or after launch, such as a blocked intake, trapped debris, or restricted raw water flow.

2. Isolate the Raw Water System

Before opening the system, close the seawater valve. This keeps seawater from entering the boat while the strainer, hoses, and pump are opened.

3. Drain the Sea Strainer

Remove the drain plug at the bottom of the sea strainer and allow the water to drain. Loosening the cap helps introduce air so the system drains more completely.

4. Inspect the Sea Strainer

After an overheating event, always check the strainer for seaweed, shells, mud, or debris. In this case, the strainer had only a small amount of material, not enough to explain the full failure.

5. Access the Impeller Pump

The engine compartment was tight, requiring access through the cabin and around the engine. Once at the pump, the face plate was removed to inspect the impeller.

6. Remove the Failed Impeller

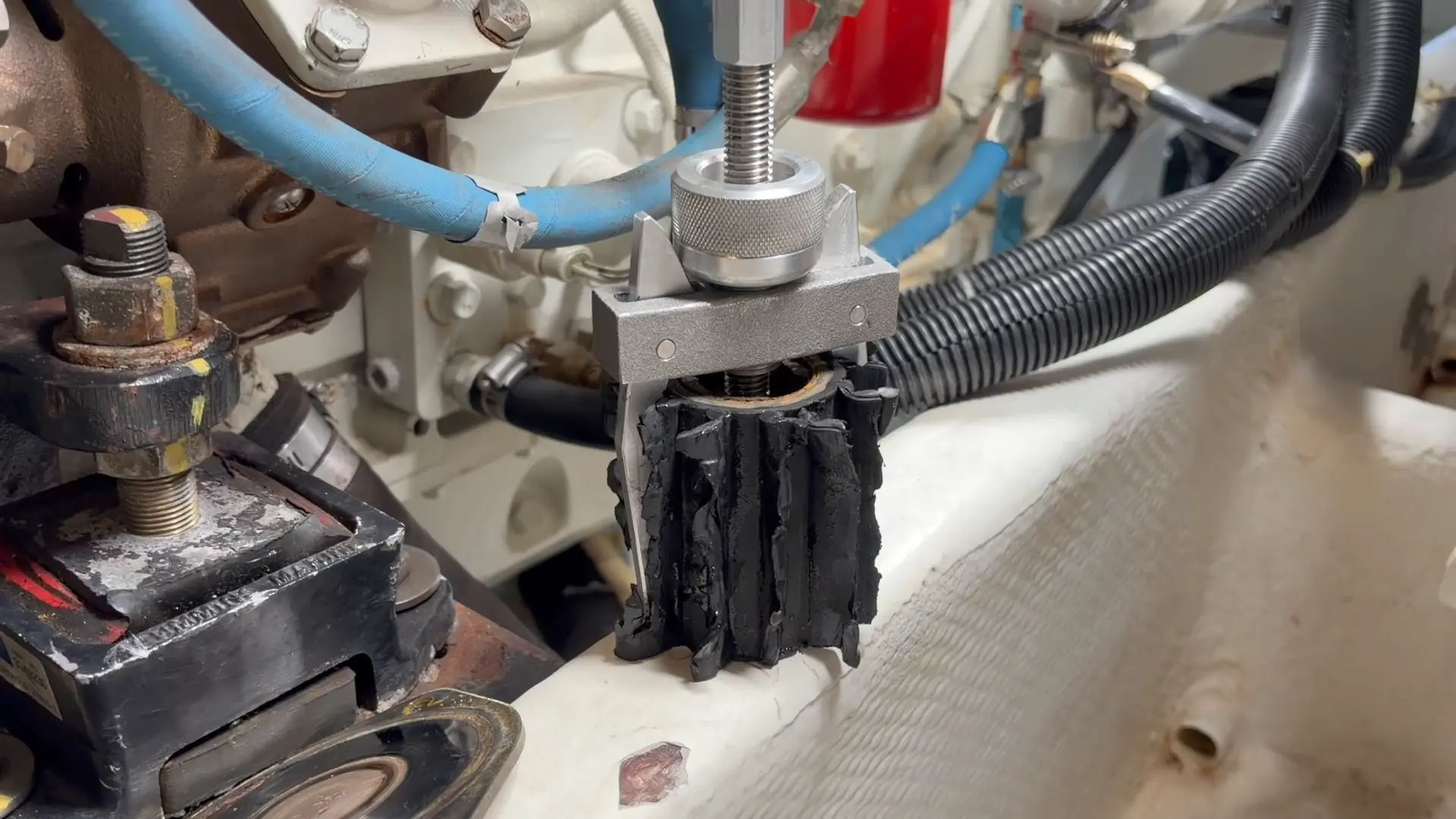

The impeller looked damaged once the cover came off. Eddie used the ImpelPro puller to remove it from a tight, blind-access position.

7. Diagnose the Failure Pattern

The impeller was missing vane material and had dust-like rubber debris around it. That pattern suggested the pump may have lost water flow and run hot rather than the impeller simply failing on its own.

8. Track Down the Missing Pieces

Every missing impeller vane has to go somewhere. Eddie inspected downstream components, including coolers and hoses, because broken impeller pieces can lodge inside tube-style coolers and restrict flow.

9. Back Flush the Cooling System

After finding debris, the cooling path was back flushed to help clear remaining pieces before reassembly.

10. Install the New Impeller

The new impeller was lubricated, aligned on the splined shaft, and rolled into place. The O-ring was inspected before reinstalling the cover.

11. Reassemble and Run Final Checks

After the hoses, clamps, cooler connections, and pump cover were reinstalled, the system was prepared for startup and checked for proper operation.

Mechanic Insight

A destroyed impeller is often a symptom, not the root cause. When Eddie saw the rubber dust, missing vane material, and heat damage, the pattern pointed toward a loss of raw water flow on the suction side of the pump. If the pump is starved for water, the impeller can run hot, soften, shed material, and break apart. Replacing the impeller without finding the restriction can set the engine up for another overheat. In a tight engine room, the ImpelPro puller helped remove the failed impeller without prying, so the rest of the diagnostic work could continue cleanly.

Troubleshooting Insights

A marine diesel overheat can come from several points in the raw water system. The key is to trace the flow path instead of assuming the impeller is the only problem.

Why should you inspect the sea strainer after an overheat?

The sea strainer should be one of the first inspection points after an overheat because seaweed, shells, mud, and debris can reduce raw water flow before water reaches the pump. Even if the strainer looks mostly clean, it is still worth checking before moving downstream.

What causes suction-side blockages in a marine raw water system?

A suction-side blockage happens before the raw water pump and can starve the impeller of water. It may happen at the through-hull, sea valve, strainer, hose, or intake side of the pump. When the impeller runs without enough water, it can overheat and shed rubber.

What should you do if impeller vanes are missing?

If an impeller comes out with missing vanes, the job is not finished. Those pieces may be trapped downstream in hoses, coolers, elbows, or heat exchanger tubes. If they are not removed, they can restrict flow and cause another overheat.

Why do tube coolers trap broken impeller pieces?

Tube-style coolers are common places for impeller pieces to collect because the small passages inside these coolers can trap vane fragments and reduce raw water flow through the cooling system.

What does rubber dust around the impeller mean?

Rubber dust around the pump bore can indicate the impeller was spinning hot or dry. This clue helps separate a normal worn impeller from one that failed because water flow was restricted.

Why should you inspect the O-ring and cover plate?

When reinstalling the pump cover, inspect the O-ring and sealing surface. A damaged or poorly seated O-ring can cause leaks, air intrusion, or poor pump performance.

Transcript

Today we’re working on a Cummins 5.9L marinized diesel. The boat went out for a sea trial and ran up to speed without any problems. It was then hauled out for bottom paint and inspection. Everything looked good.

After the boat was put back in the water, the engine was started, and while getting ready to come back to the dock, it overheated.

We’re going to start by changing the impeller, but first we need to isolate the raw water system. That means closing the seawater valve, draining the sea strainer, and then working back through the boat to access the impeller pump.

With the valve closed, we can remove the plug from the bottom of the sea strainer and drain as much water from the system as possible.

This strainer has a little bit of debris in it, but not enough to stop the flow of water to the impeller. We’ll let the strainer finish draining, then reinstall the plug and cap.

Now we’ll move through the cabin to the other side of the boat so we can access the impeller pump.

We’ll start by taking off the cover plate. Once the cover is removed, the first look at the impeller doesn’t look terrible, but it may have some missing vanes. We’ll pull it out and see what it looks like.

For this impeller, the large ImpelPro puller is a good fit.

To set up the tool, wind the threaded rod out until it is flush with the bottom of the strongback. Set both arms parallel and choose two positions where the arms can fit around the impeller without interfering with the cam.

This is a tight space. The tool has to slide in through a small opening, and the arms need to be tightened from behind. The teeth set into the rubber impeller, and the bearing-driven puller uses a 9/16-inch wrench or socket to wind the impeller out.

With this engine bay, a competitor-style puller with knobs would not fit well. The knobs run into nearby components, and the tool cannot seat squarely. If the puller is forced off-center, it may feel like the impeller is stuck when the real issue is poor alignment.

Now we’ll wind the threaded rod in until it touches the shaft. The pull is slow because the working position is awkward, but the impeller is coming out without slipping.

The impeller is now removed.

It is badly damaged and missing vane material. It is no longer capable of pumping at the flow rate it should. There is also rubber dust around it, which suggests that something may have caused a loss of water flow.

This failure pattern makes it look like the impeller got hot. The end of the impeller looks softened and distorted. That points toward a restriction somewhere on the suction side of the pump, possibly at the intake, strainer, hose, or another upstream area.

Another thing to note is how centered the tool stayed during removal. Even though it was installed mostly blind with one hand, the puller remained centered on the shaft. That is why the impeller came out easily without binding.

Now that the impeller is out, we need to find the missing pieces. They have to go somewhere.

We removed part of the cooling system piping and began inspecting the downstream components. One section is a double-wall cooler, and another is a tube-style cooler. Tube coolers can make it difficult for broken impeller pieces to pass through, so those areas need to be checked carefully.

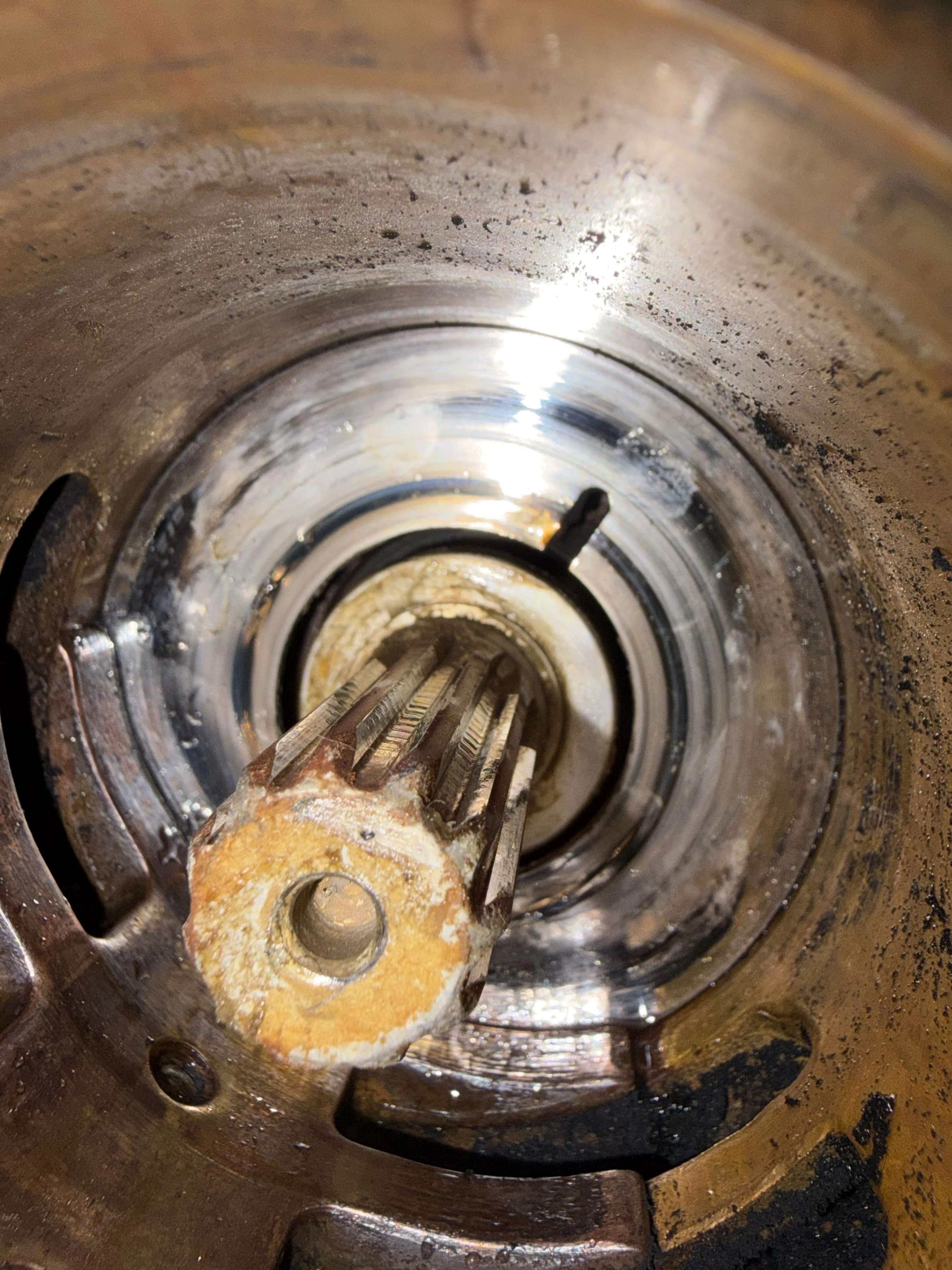

The impeller vanes are worn thin, and there is rubber dust inside the pump bore. Before installing the new impeller, the bore needs to be cleaned out.

Next, we remove hose clamps and move the cooler aside to inspect for debris. Some small pieces came out during the inspection.

The cooling system is then back flushed to help clear out remaining impeller fragments. This step is important because any pieces left in the system can restrict flow and cause another failure.

After back flushing, we begin reassembly. The cooler, adapter hoses, elbows, and clamps are reinstalled and tightened.

Now we prepare the new impeller. It is lubricated so the vanes can fold into the pump bore more easily. This impeller is splined, so it can be rotated and rolled into place.

The O-ring is inspected. In this case, the old O-ring is still present and still has some protrusion, meaning it can still compress when the cover is installed. If an O-ring is damaged, flattened, cut, or no longer proud of the groove, it should be replaced.

The cam is closest to the working side, so the impeller is installed with that orientation in mind.

After the new impeller is installed, the cover plate is reinstalled and the system is prepared for startup.

The final check is to start the engine and make sure the alarms do not go off. Any remaining fine rubber dust should wash through now that the new impeller is making proper contact and moving water.

The main lesson is that the failed impeller was not the whole problem. The damage pattern suggested it had been starved for water. When an impeller fails like this, the next step is to find what caused the failure and make sure all missing pieces are removed from the cooling system.

Related Marine Maintenance

Tool Used in This Video

Eddie uses the ImpelPro impeller puller to remove a damaged flexible vane rubber impeller from a tight marine diesel raw water pump. For boat owners and marine mechanics, the goal is controlled impeller removal without forcing the tool off-center or damaging the pump housing.

FAQ Why did my boat overheat after a sea trial?

A boat can overheat after a sea trial if raw water flow becomes restricted after launch or if debris reaches the cooling system. In this Cummins 5.9L case, the damaged impeller, missing vane material, and rubber dust pointed toward a loss of water flow, not just a simple worn impeller.

What happens if I do not find the missing impeller vanes?

Missing impeller vanes can lodge in hoses, elbows, coolers, or heat exchanger tubes. If those pieces stay in the system, they can restrict raw water flow and cause another overheat even after a new impeller is installed.

How do I know if impeller failure was caused by a suction restriction?

Look for heat damage, softened rubber, missing vane material, and rubber dust around the pump bore. Those signs can mean the pump was starved for water and the impeller ran hot or dry before breaking apart.

Can rubber debris from a failed impeller damage my engine?

Rubber debris may not damage the engine block directly, but it can block raw water passages and reduce cooling flow. That restriction can lead to overheating, alarms, poor cooling performance, and repeat impeller failure if the debris is not removed.

Do I need to back flush after replacing a marine impeller?

Back flushing is recommended when the old impeller is missing vanes or has shed rubber. It helps clear fragments from coolers, hoses, and raw water passages before the engine is run again.
